	SY6406 USB2.0 Multi-purpose Write-Blocker

	SY6406 USB2.0 Multi-purpose Write-BlockerSY6406 USB2.0 Multi-purpose Write-Blocker delivers secure, hardware based write-protection for USB mass storage devices and each kind of memory stick. It is optimized for use with products that conform to the USB Mass Storage "Bulk-Only" class specification. Supports USB2.0 high-speed and USB1.1 full-speed device interface and works with any USB mass storage device and each kind of memory stick. Supports many host operation systems, free driver installation. SY6406 can be loaded in a bay adapter and easily installed on the computer chassis, easy to use!

	SY6406 Multi-purpose Writ-Blocker

	Features
	Provides secure, hardware-based write protection program for mass storage device. Supports USB2.0 high speed and USB1.1 full-speed. Works with any USB mass storage device and each kind of memory stick. Write-Blocked access to USB drives at about 32 MB/s. That’s 40%-60% faster than the competing product. Supports many host operation system (Windows 2000 / XP / Vista, Linux, etc.). Free driver installation. Simple operation, supports for plug-and-pull, easy to use.

	Specifications
	Power consumption: less than 2W. USB Power Supply: Voltage: 5V, Current: <0.5A. Work Environment: Temperature -20?C ~ +55 ?C, Relative Humidity 90%. Storage Environment: Temperature -40?C,~70?C, Relative Humidity 90%. Storage Environment: Temperature -40~70?C, Relative Humidity 90%. Size: 100mm 93mm 24mm (L x W x H). Weight: 120g.
	Applications
	Application of judicial evidence, the Forensic Examiners rely on the WriteBlocker during the acquisition of data. Data Recovery. Multimedia Classroom in school. Print service station. Significant write-protect the database.

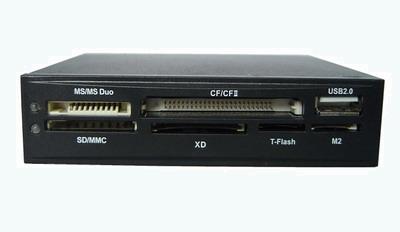

	SY6406 loaded in a bay adapter. It can be easily installed on the computer chassis. It supports USB mobile hard disk, USB disk, each kind of memory stick (SD/MMC/MS/XD/TF/M2).
	Download Datasheet(pdf)
