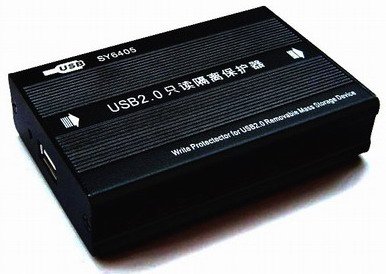

SY6405 WriteBlocker




SY6405 USB2.0 WRITEBLOCKERSY6405 USB2.0 WriteBlocker delivers secure, hardware based write-protection for USB mass storage devices. It is optimized for use with products that conform to the USB Mass Storage "Bulk-Only" class specification. Supports USB2.0 high-speed and USB1.1 full-speed device interface and works with any USB mass storage device. Supports many host operation systems, free driver installation, easy to use!





SY6405 WriteBlocker



  Features


•  Provides secure, hardware-based write protection program for mass storage device.
•  Supports USB2.0 high speed and USB1.1 full-speed.

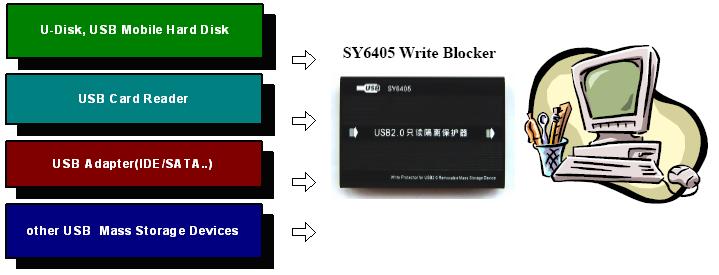

•  Works with any USB mass storage device.
•  Write-Blocked access to USB drives at about 32 MB/s. That’s 40%-60% faster than the competing product.
•  Supports many host operation system (Windows 2000 / XP / Vista, Linux, etc.).
•  Free driver installation.
•  Simple operation, supports for plug-and-pull, easy to use.





Specifications




•  Power consumption: less than 2W.
•  DC Power Supply : Voltage: 6~12V, Current: >1A.
•  USB Power Supply: Voltage: 5V, Current: <0.5A.
•  Work Environment: Temperature 0 ~ 55 ?C, Relative Humidity 90%.
•  Storage Environment: Temperature -40~70?C, Relative Humidity 90%.
•  Size: 104mm * 69mm * 24mm (L x W x H).
•  Weight: 140g.


  Applications
  •  Application of judicial evidence, the Forensic Examiners rely on the WriteBlocker during the acquisition of data.
•  Data Recovery.
•  Multimedia Classroom in school.
•  Print service station.
•  Significant write-protect the database.




Download Datasheet(pdf)
