    SY2303M USB MODULE


SY2303 USB Module is your smart and convenient accessory for connecting the chip microcoputer-based device to your USB-equipped Windows host computer. It provides a bridge connection with a standard DIP28 connector in one end and a standard Type-A USB plug connector on the other end.

SY2303M USB Module Contents:

1) a SY2303M USB Module;
2) a Driver CD;
3) a Shielded A-B USB Cable;









Features & Specifications

1) Full compliance with the USB Specification v1.1 and USB CDC v1.1;
2) Support the RS232 Serial interface based on high speed USB UART IC;
3) Using standard DIP 28 connector;
4) With a Shielded A-B USB Cable;
5) On the model crystal oscillator running at 12M Hz;
6) Supports Windows 98/SE, ME, 2000, XP, Windows CE3.0, CE NET, Linux, and Mac OS
7) Power supply votage is 5V (by USB);
8) Provide 3.3V regulator on the module (can be used).



Typical Application

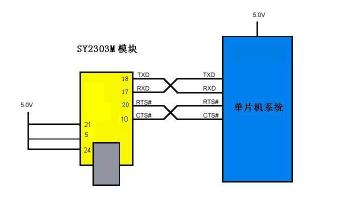

Power voltage 5V

( USB supply )

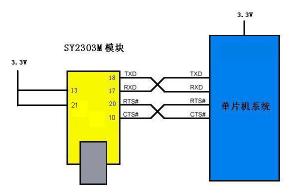

Power voltage 3.3V

(the 3.3V regulator supply )
